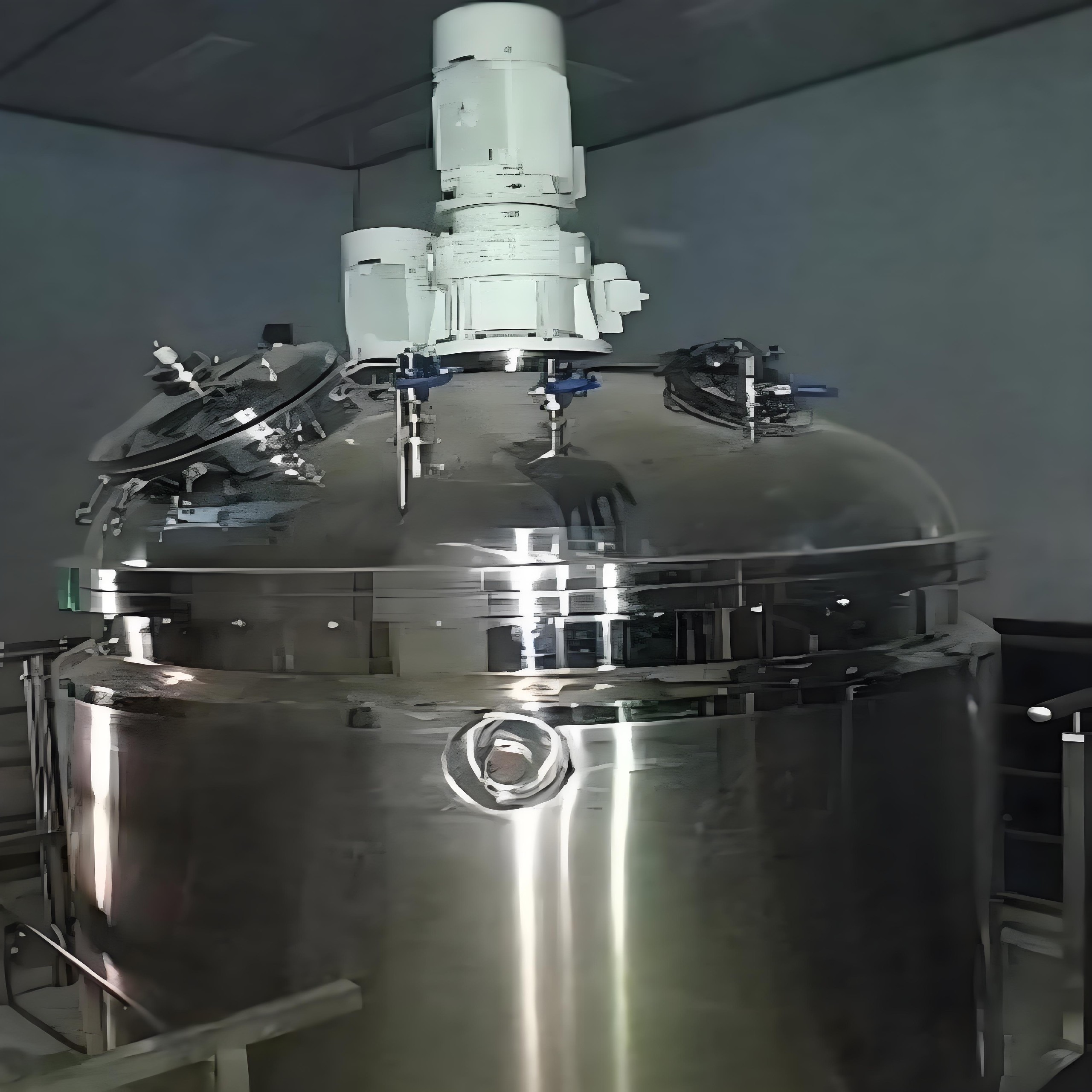

Production-type high-speed extractor (HHBE-2000L) is an efficient extraction device produced by JEEDUO, mainly used for batch extraction in factories.
It is mainly composed of a high-speed motor, a flash extraction tank, a flash extraction knife head, a bottom filter screen, a heating evaporation (or condensation) system, an intelligent control system, etc. Due to its fast extraction speed and good effect, it is deeply favored by a wide range of customers.
The Production-type high-speed extractor adopts a 75KW variable-frequency motor, and the effective volume of the extraction tank is 2 tons each time.
The maximum feeding capacity can reach 200 kilograms. The extraction time is generally 5 to 10 minutes. The production type ultra-speed extraction instrument adopts a 75KW variable frequency motor.
The effective volume of the extraction tank is 2 tons. Each feeding capacity can reach up to 200 kilograms, and the extraction time is generally 5 to 10 minutes.
The extraction yield is even better than that of the experimental type and pilot-scale type, significantly reducing the extraction cost.
It is mainly composed of a high-speed motor, a flash extraction tank, a flash extraction knife head, a bottom filter screen, a heating evaporation (or condensation) system, an intelligent control system, etc. Due to its fast extraction speed and good effect, it is deeply favored by a wide range of customers.
The Production-type high-speed extractor adopts a 75KW variable-frequency motor, and the effective volume of the extraction tank is 2 tons each time.
The maximum feeding capacity can reach 200 kilograms. The extraction time is generally 5 to 10 minutes. The production type ultra-speed extraction instrument adopts a 75KW variable frequency motor.
The effective volume of the extraction tank is 2 tons. Each feeding capacity can reach up to 200 kilograms, and the extraction time is generally 5 to 10 minutes.
The extraction yield is even better than that of the experimental type and pilot-scale type, significantly reducing the extraction cost.
- Description
- Parameter
- Video
The Production-type high-speed extractor adopts a 75KW variable-frequency motor, and the effective volume of the extraction tank is 2 tons each time. The maximum feeding capacity can reach 200 kilograms. The extraction time is generally 5 to 10 minutes. The production type ultra-speed extraction instrument adopts a 75KW variable frequency motor. The effective volume of the extraction tank is 2 tons. Each feeding capacity can reach up to 200 kilograms, and the extraction time is generally 5 to 10 minutes. The extraction yield is even better than that of the experimental type and pilot-scale type, significantly reducing the extraction cost.
The working principle of the Production-type high-speed extractor:
The extracted materials are fed into the feeding port, and the extraction solvent is added from the solvent pipeline. The temperature is adjusted to the required level. The extraction time is set in the intelligent control system (generally within ten minutes). Then, the controller is started, and the high-speed motor drives the knife head to start the extraction. When the extraction is completed within the set time, the flash extractor will automatically enter a low-speed stirring state. Open the liquid discharge valve, and the extract will be automatically discharged under the action of gravity. When the liquid level drops below the flash lift head, the flash lift system automatically shuts down. Continue to drain the liquid until it is completely discharged. Close the liquid discharge valve, start the heating system (using steam heating or electric heating), heat and dry the extract residue on the filter screen, and the evaporated solvent gas enters the solvent recovery system. Extraction completed.
If two or more extractions are required, repeat the above operation.
Performance features:
1. Extraction at room temperature (or by heating or cooling to the set temperature), without damaging the active ingredients.
2. The extraction time is short, and it can be completely extracted within 5 to 10 minutes. The extraction efficiency is high, and the yield of active ingredients is significantly higher than that of other methods.
3. Energy conservation: No steam is required (for some varieties that need to be extracted at a temperature higher than normal, only steam needs to be passed through the interlayer for insulation). Only 12.5KWh of electricity is consumed for 10 minutes of extraction.
4. It is easy to operate and has a high degree of automation. Once the extraction program is set up, one person can operate 2 to 3 extractors.
| Model | Specification | |
| High - speed Motor | Power | 75KW |
| Working Voltage | 380VAC ± 10% 50HZ | |
| Rotating Speed | 0 - 6000r/min | |
| Flash Extraction Tank | Diameter | 1200mm |
| Height | Cylinder: 1000mm | |
| Lower Cone: 400mm | ||
| Upper Head: 350mm | ||
| Volume | 1.8t | |
| Material | 304 | |
| Working Pressure | Inner Tank ≤ 0.05MPa | |
| Jacket ≤ 0.25MPa | ||
| Working Temperature (℃) | Inner Tank ≤ 100 | |
| Jacket ≤ 120 | ||
| Extraction Solvent | Water, ethanol, methanol, ethyl acetate, acetone, chloroform, etc. (Ethers are prohibited) | |
| Filter Screen | Material | 304 |
| Pore Size | 40 - 200 meshes (Select the mesh number as needed) | |
| Area | 1.13㎡ | |
| Feeding Amount | 200KG | |
| Solvent Amount | Depending on the nature of the extracted material, generally 3 - 10 times the feeding amount. (The minimum amount must submerge the extraction cutter head) | |
| Extraction Time | 5 - 10min | |
Lab type | Standard type | Production-oriented | |
Capacity | 5L | 100L/200L | 1000L/2000L |
Processing period | 1-5 min | 1-10mins | 15-20mins |
