Pressure filter

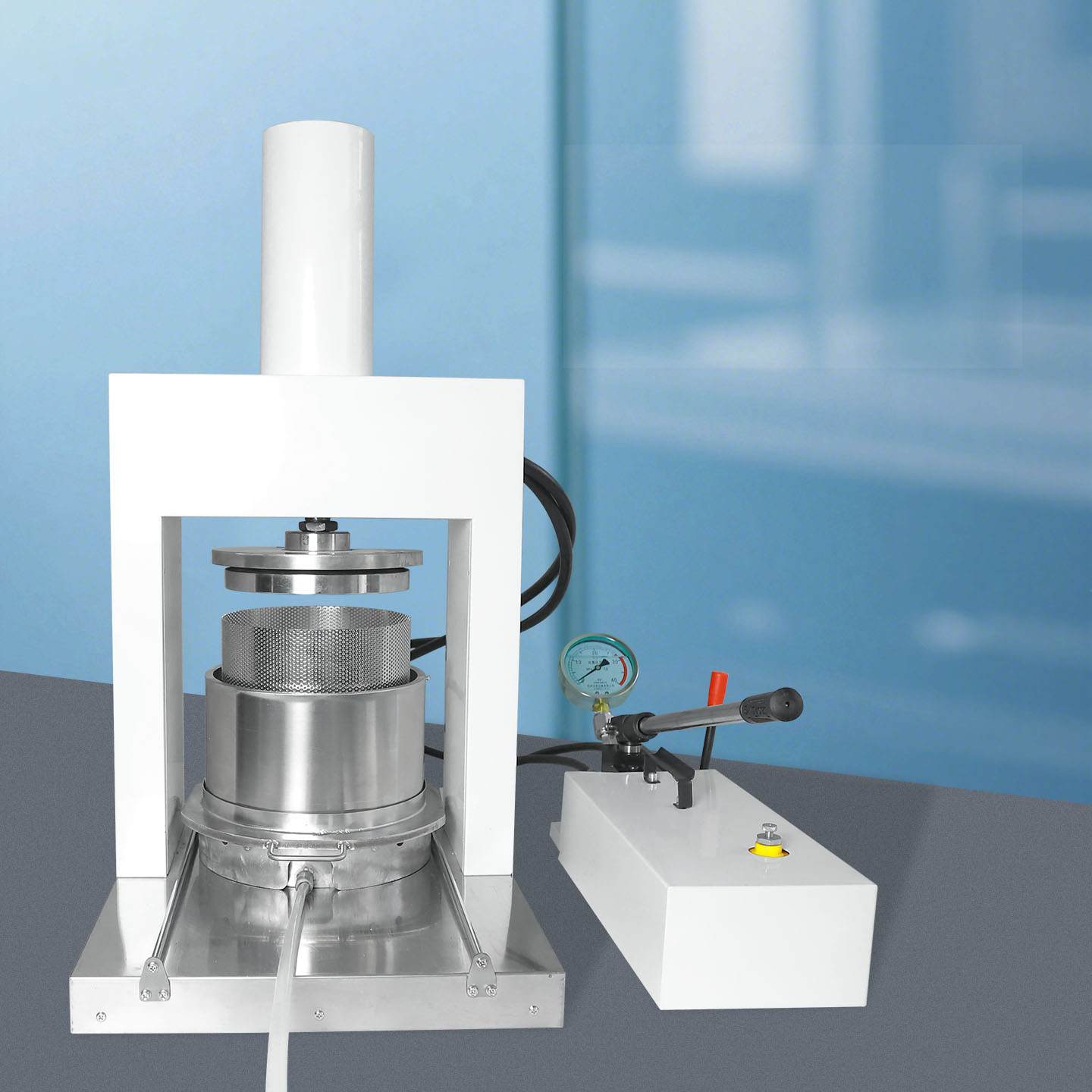

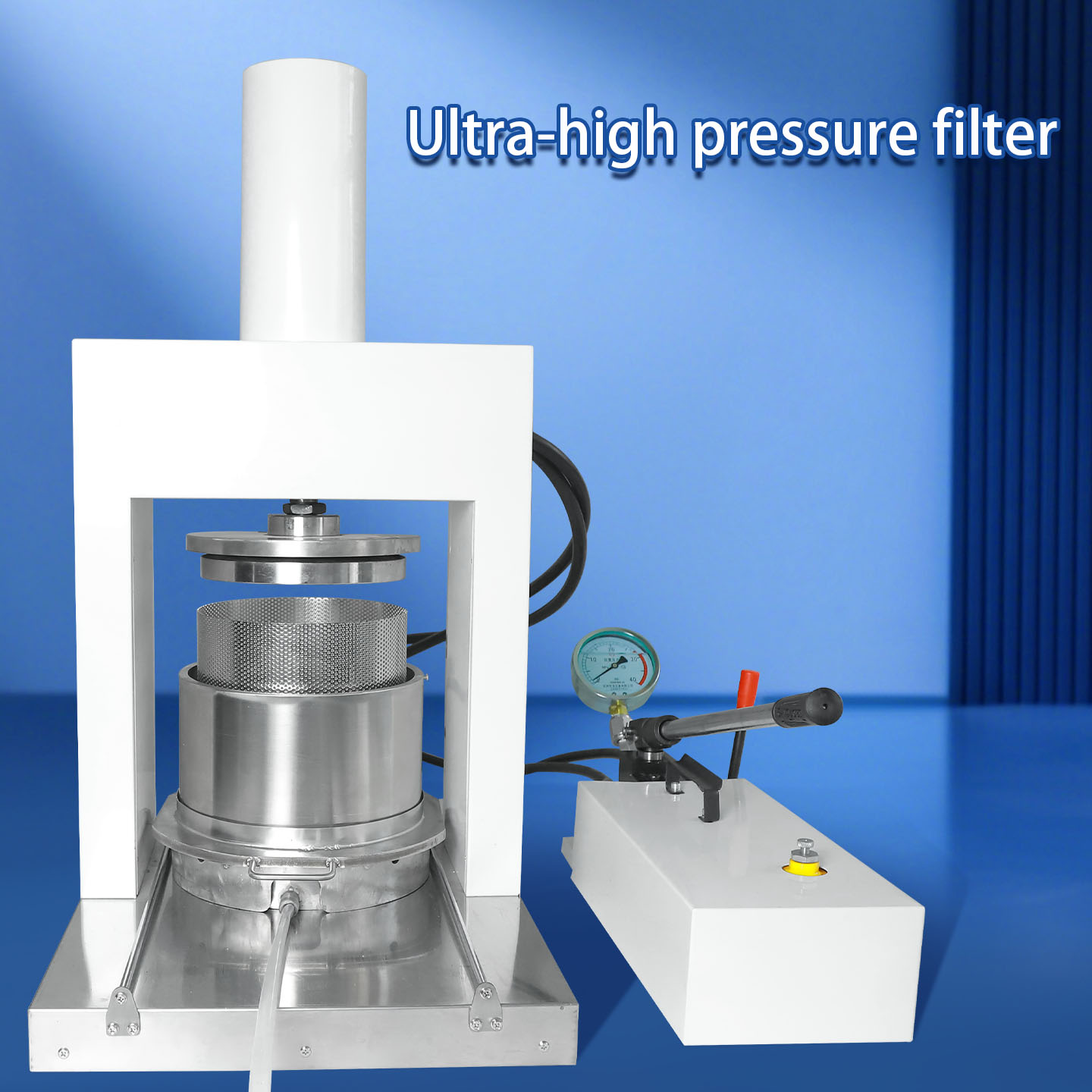

Ultra high pressure filter press is mainly used in solid-liquid separation scenarios such as filtering liquids and rapid dehydration.

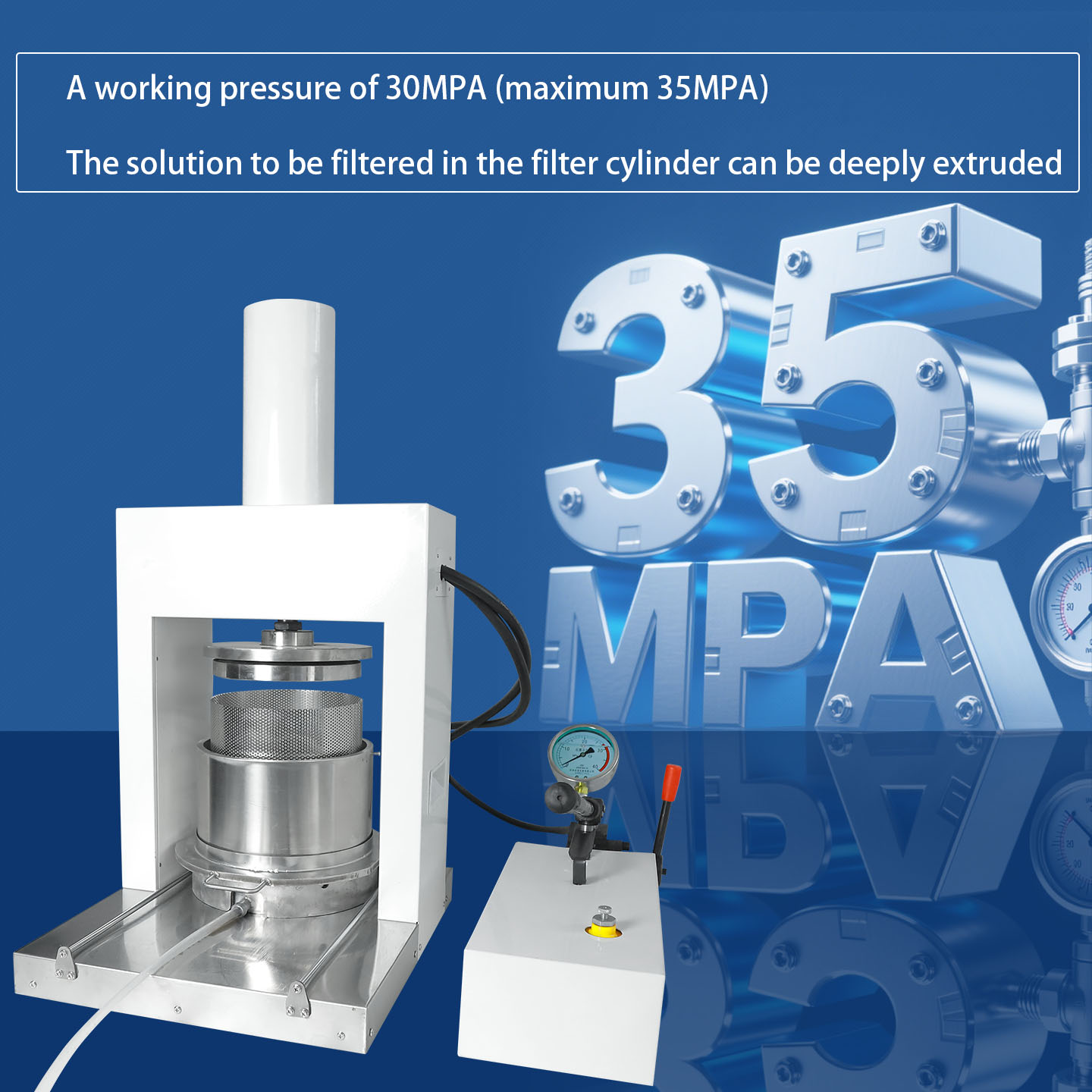

This product's ultra-high pressure system provides a pressure of 30MPA, and the solid moisture content after pressure filtration is less than 40%, achieving the purpose of rapid dehydration and filtration.
This Ultra high pressure filter is simple to use and also durable, no worry about its maintenance.
This Ultra high pressure filter equipment is easy to operate, safe and reliable, and has a very short operating cycle, making it a powerful tool for laboratories to replace filtration equipment.
This product's ultra-high pressure system provides a pressure of 30MPA, and the solid moisture content after pressure filtration is less than 40%, achieving the purpose of rapid dehydration and filtration.
This Ultra high pressure filter is simple to use and also durable, no worry about its maintenance.
This Ultra high pressure filter equipment is easy to operate, safe and reliable, and has a very short operating cycle, making it a powerful tool for laboratories to replace filtration equipment.
- Description
- Parameter
- Video
This filter press equipment is easy to operate, safe and reliable, and has a very short operating cycle, making it a powerful tool for laboratories to replace filtration equipment.
Suction filter VS Ultra high pressure filter | ||
|---|---|---|
| Suction filter | Ultra high pressure filter | |
| Power | Vacuum degree | Ultra-high pressure hydraulic pump |
| Work pressure | -0.1MPa | 20~30MPa |
| Single operation time (5L) | 150min | 8min |
| Moisture content of filter residue | 50% | < 40% |
| Clean | Time-consuming and laborious | Stainless steel 304 can be washed directly |
| Equipment noise | 60 dB (vacuum pump noise) | Silence |
| Resistance to impact | Glass is fragile, bad | Stainless steel 304 is strong and durable, good |
| Items | Parameters |
| Work pressure | 20~30MPA (approximately equal to 7500kg) |
| Maximum pressure | 35MPA |
| Inner diameter of filter cylinder | 202mm |
| Pressure plate diameter | 198mm |
| Maximum volume of extraction solution | 5L |
| Fastest extraction time | 180 seconds |
